model year Front Rear
50 CRM R 96-96 DBD062 N/A
75 CRM R 89-94 DBD062 N/A
80 CR 92-95 N/A DBD006

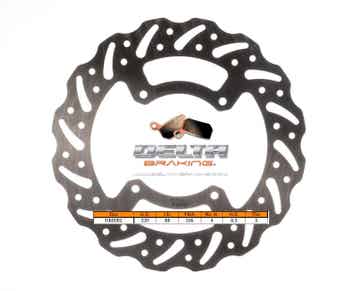

80 CR 96-02 DBD002 DBD006
85 CR R3-4/RB4-7 03-07 DBD002 DBD006
125 CR R2-7 02-07 DBD001 DBD005
125 CR RE/RF/RG 84-86 DBD060 N/A
125 CR RH/RJ 87-88 DBD060 DBD071

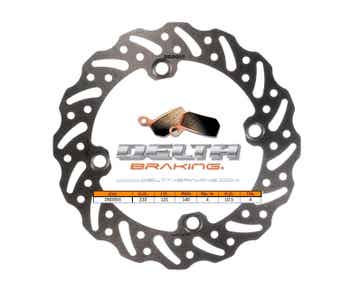

125 CR RK 89 DBD066 DBD003
125 CR RL/RM 90-91 DBD067 DBD003
125 CR RN/RP/RR 92-94 DBD062 DBD003
125 CR RS/RT/RV 95-97 DBD001 DBD003

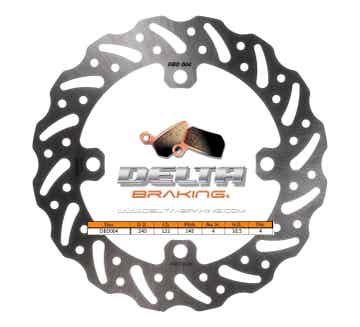

125 CR RW/RW/RY/R1 98-01 DBD001 DBD004

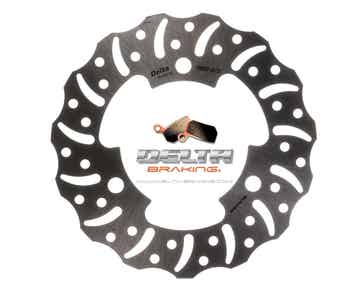

125 CRF F/FB SMALL & BIG WHEEL 14-23 DBD079 N/A

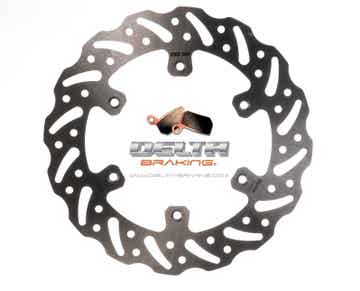

150 CRF F3-9 03-20 DBD080 N/A
150 CRF R/RB SMALL & BIG WHEEL 07-22 DBD002 DBD006
250 CR R2-7 02-07 DBD001 DBD005
250 CR RE/RF/RG 84-86 DBD060 N/A
250 CR RH/RJ 87-88 DBD060 DBD071
250 CR RK 89 DBD066 DBD003
250 CR RL/RM 90-91 DBD067 DBD003
250 CR RN/RP/RR 92-94 DBD062 DBD003
250 CR RS/RT 95-96 DBD001 DBD003
250 CR RV/RW/RX/RY/R1 97-01 DBD001 DBD004
250 CRF F 21-24 DBD082 DBD086
250 CRF R 260mm 15-24 DBD059 DBD005
250 CRF R4-7 04-07 DBD001 DBD005
250 CRF R8-9/RA-RG 08-14 DBD001 DBD005
250 CRF RALLY 17-21 DBD083 DBD085
250 CRF RX 19-24 DBD059 DBD005
250 CRF X 04-20 DBD001 DBD005
250 CRM R 89-90 DBD060 N/A
250 CRM R 91-98 DBD062 N/A
250 NX 90-93 DBD062
250 XLR R 91- DBD062
250 XR 84-04 DBD062
300 CRF L 20-23 DBD081 DBD085
300 CRF L RALLY 20-23 DBD083 DBD085
300 CRF RX 19-23 DBD059 DBD005
350 XR 84-87 DBD062
400 CRF RX 19-23 DBD059 DBD005
400 XR 96-04 DBD062 DBD204
450 CRF L 18 19-20 DBD084 DBD005
450 CRF R 260mm 15-24 DBD059 DBD005
450 CRF R2-9/RA-E 02-14 DBD001 DBD005
450 CRF RL 18 20-24 DBD084 DBD005
450 CRF RWE 19-24 DBD059 DBD005
450 CRF RX 18 17-24 DBD059 DBD005
450 CRF X 05-24 DBD001 DBD005
500 CR RE/RF/RG 84-86 DBD060 N/A
500 CR RH/RJ 87-88 DBD060 DBD071
500 CR RK 89 DBD066 DBD003
500 CR RL/RM 90-91 DBD067 DBD003
500 CR RN/RP/RR 92-94 DBD062 DBD003
500 CR RS/RT/RV/RW/RX/RY/R1 95-01 DBD001 DBD003
500 XR 83-86 DBD062
600 XR 87-90 DBD062
600 XR 91-99 DBD062 DBD204
650 XR R 00-15 DBD062
